In the previous article we learned about about what is security level of cisco ASA firewall ,different types of security levels, different types of security zones and in this article we learn how to configure cisco ASA firewall security level and check the traffic from the interface.

Explain Cisco ASA security level with practical example

Types of Cisco ASA security levels

There are three types of security levels.

Security level 100 is the highest security level on the Cisco ASA firewall and by default it it assigned the inside interface of the cisco ASA firewall. As it has highest security level traffic from internal network can roam any where. As security level is higher for the inside zone than the other zone thus traffic from the inside zone move to the DMZ zone as well outside zone.

Security level 0 is the lowest security level on the  cisco ASA firewall and by default it is assigned to the outside interface of the cisco ASA firewall. As it is lowest security level traffic from the outside interface  can not reach the internal network unless we apply policy within the access-list. For the outside zone security level is lower than inside zone as well as DMZ zone therefore traffic from the outside zone can not move to inside zone as well as DMZ zone.

Security level<1-99> is the another security level you can create any security level. Lets take an example suppose we create a DMZ zone and give one security level which is 50.traffic from the DMZ zone move to outside interface as dmz security level is higher than outside security level and traffic from the inside interface move to DMZ zone because inside security level is higher than DMZ level but traffic from the DMZ zone can not reach to inside interface because inside interface has security level which is higher the security level of DMZ zone.

When we are going to configure security level of cisco ASA firewall security level 100 is automatically set for the inside zone and security level 0 is assigned for the DMZ zone and outside zone. We manually configured  DMZ security level 50 to configure cisco ASA firewall.

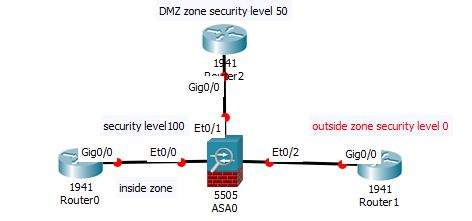

Lab Diagram


Configure Cisco ASA security level with practical example
Configure Cisco ASA security level with practical example
From  the above diagram we configure cisco ASA firewall security level. Suppose in the inside zone we have network 192.168.3.0/24 , in the dmz zone we have network 192.168.4.0/24 and  in the outside zone we have network 192.168.5.0/24.

How to Configure  Cisco ASA security level

To configure cisco ASA security level we need to configure the interface using below commands.
For inside zone
Ciscoasa (config)#interface E0/0
Ciscoasa(config-if)#nameif INSIDE
Ciscoasa(config-if)#ip address 192.169.3.2 255.255.255.0
Ciscoasa(config-if)#no shutdown

For DMZ zone
Ciscoasa (config)#interface E0/1
Ciscoasa(config-if)#nameif DMZ
Ciscoasa(config-if)#ip address 192.169.4.2 255.255.255.0
Ciscoasa(config-if)#no shutdown

For outside zone
Ciscoasa (config)#interface E0/2
Ciscoasa(config-if)#nameif OUTSIDE
Ciscoasa(config-if)#ip address 192.169.5.2 255.255.255.0
Ciscoasa(config-if)#no shutdown

Thanks  for read this article.If this article is helpful please share this article.
