In this article we learn how to create software RAID1 using mdadm tool on two hard disks in linux operating system.

What is RAID1

 It is called data mirroring because it read write the identical data among the multiple disks. While one disk is failure we can retrieve data from the other working disk. So it provides redundancy .while we replace the new disk in the place of failure disk data will automatically sync with each other.

Setup software RAID1(data mirroring) using mdadm tool

Step1: Before creating software RAID1 we need to verify the partition table. To verify it we need to execute the below command.

#fdisk -l
Disk /dev/sda: 8589 MB, 8589934592 bytes
255 heads, 63 sectors/track, 1044 cylinders
Units = cylinders of 16065 * 512 = 8225280 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk identifier: 0x000ef612

   Device Boot      Start         End      Blocks   Id  System
/dev/sda1   *           1          64      512000   83  Linux
Partition 1 does not end on cylinder boundary.
/dev/sda2              64        1045     7875584   8e  Linux LVM

Disk /dev/sdb: 2147 MB, 2147483648 bytes
255 heads, 63 sectors/track, 261 cylinders
Units = cylinders of 16065 * 512 = 8225280 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk identifier: 0x00000000

Disk /dev/sdc: 2147 MB, 2147483648 bytes
255 heads, 63 sectors/track, 261 cylinders
Units = cylinders of 16065 * 512 = 8225280 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk identifier: 0x00000000

In the above output we saw that we have two disks that is /dev/sdb and /dev/sdc. Using these two disks we create RAID1.

Step2: Now we need to verify that is there existing raid is configured or not using the below command.

[root@localhost ~]# mdadm --examine /dev/sd[b-c]
mdadm: No md superblock detected on /dev/sdb.
mdadm: No md superblock detected on /dev/sdc.

There is no existing raid is configured.

Step3: Now creating(sdb and sdc) partition for RAID using fdisk command.


[root@localhost ~]# fdisk /dev/sdb
Device contains neither a valid DOS partition table, nor Sun, SGI or OSF disklabel
Building a new DOS disklabel with disk identifier 0xc77fae91.
Changes will remain in memory only, until you decide to write them.
After that, of course, the previous content won't be recoverable.

Warning: invalid flag 0x0000 of partition table 4 will be corrected by w(rite)

WARNING: DOS-compatible mode is deprecated. It's strongly recommended to
         switch off the mode (command 'c') and change display units to
         sectors (command 'u').

Command (m for help): n
Command action
   e   extended
   p   primary partition (1-4)
p
Partition number (1-4): 1
First cylinder (1-261, default 1):
Using default value 1
Last cylinder, +cylinders or +size{K,M,G} (1-261, default 261):
Using default value 261

Command (m for help): p

Disk /dev/sdb: 2147 MB, 2147483648 bytes
255 heads, 63 sectors/track, 261 cylinders
Units = cylinders of 16065 * 512 = 8225280 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk identifier: 0xc77fae91

   Device Boot      Start         End      Blocks   Id  System
/dev/sdb1               1         261     2096451   83  Linux

After that we press “L” key to list all available types. And then press “t” to choose the partition and then choose “fd” for linux auto raid.after that press “w” to write changes.

Command (m for help): l

 0  Empty           24  NEC DOS         81  Minix / old Lin bf  Solaris
 1  FAT12           39  Plan 9          82  Linux swap / So c1  DRDOS/sec (FAT-
 2  XENIX root      3c  PartitionMagic  83  Linux           c4  DRDOS/sec (FAT-
 3  XENIX usr       40  Venix 80286     84  OS/2 hidden C:  c6  DRDOS/sec (FAT-
 4  FAT16 <32M      41  PPC PReP Boot   85  Linux extended  c7  Syrinx
 5  Extended        42  SFS             86  NTFS volume set da  Non-FS data
 6  FAT16           4d  QNX4.x          87  NTFS volume set db  CP/M / CTOS / .
 7  HPFS/NTFS       4e  QNX4.x 2nd part 88  Linux plaintext de  Dell Utility
 8  AIX             4f  QNX4.x 3rd part 8e  Linux LVM       df  BootIt
 9  AIX bootable    50  OnTrack DM      93  Amoeba          e1  DOS access
 a  OS/2 Boot Manag 51  OnTrack DM6 Aux 94  Amoeba BBT      e3  DOS R/O
 b  W95 FAT32       52  CP/M            9f  BSD/OS          e4  SpeedStor
 c  W95 FAT32 (LBA) 53  OnTrack DM6 Aux a0  IBM Thinkpad hi eb  BeOS fs
 e  W95 FAT16 (LBA) 54  OnTrackDM6      a5  FreeBSD         ee  GPT
 f  W95 Ext'd (LBA) 55  EZ-Drive        a6  OpenBSD         ef  EFI (FAT-12/16/
10  OPUS            56  Golden Bow      a7  NeXTSTEP        f0  Linux/PA-RISC b
11  Hidden FAT12    5c  Priam Edisk     a8  Darwin UFS      f1  SpeedStor
12  Compaq diagnost 61  SpeedStor       a9  NetBSD          f4  SpeedStor
14  Hidden FAT16 <3 63  GNU HURD or Sys ab  Darwin boot     f2  DOS secondary
16  Hidden FAT16    64  Novell Netware  af  HFS / HFS+      fb  VMware VMFS
17  Hidden HPFS/NTF 65  Novell Netware  b7  BSDI fs         fc  VMware VMKCORE
18  AST SmartSleep  70  DiskSecure Mult b8  BSDI swap       fd  Linux raid auto
1b  Hidden W95 FAT3 75  PC/IX           bb  Boot Wizard hid fe  LANstep
1c  Hidden W95 FAT3 80  Old Minix       be  Solaris boot    ff  BBT
1e  Hidden W95 FAT1

Command (m for help): t
Selected partition 1
Hex code (type L to list codes): fd
Changed system type of partition 1 to fd (Linux raid autodetect)

Command (m for help): p

Disk /dev/sdb: 2147 MB, 2147483648 bytes
255 heads, 63 sectors/track, 261 cylinders
Units = cylinders of 16065 * 512 = 8225280 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk identifier: 0xc77fae91

   Device Boot      Start         End      Blocks   Id  System
/dev/sdb1               1         261     2096451   fd  Linux raid autodetect

Command (m for help): w
The partition table has been altered!

Calling ioctl() to re-read partition table.
Syncing disks.

Same above steps we have to follow to create partition on /dev/sdc.

Step4: Once partitions has been created we need to verify the changes using the below command.
[root@localhost ~]# mdadm --examine /dev/sd[b-c]
/dev/sdb:
   MBR Magic : aa55
Partition[0] :      4192902 sectors at           63 (type fd)
/dev/sdc:
   MBR Magic : aa55
Partition[0] :      4192902 sectors at           63 (type fd)

Step5: creating RAID md devices using the below command.

[root@localhost ~]# mdadm --create /dev/md0 --level=mirror --raid-devices=2 /dev/sd[b-c]1
mdadm: Note: this array has metadata at the start and
    may not be suitable as a boot device.  If you plan to
    store '/boot' on this device please ensure that
    your boot-loader understands md/v1.x metadata, or use
    --metadata=0.90
Continue creating array? y
mdadm: Defaulting to version 1.2 metadata
mdadm: array /dev/md0 started.

Step6: verify raid creation using the following command.

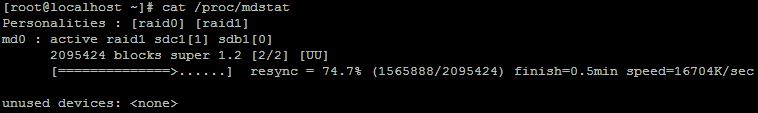

[root@localhost ~]# cat /proc/mdstat
Personalities : [raid0] [raid1]
md0 : active raid1 sdc1[1] sdb1[0]
      2095424 blocks super 1.2 [2/2] [UU]
      [==============>......]  resync = 74.7% (1565888/2095424) finish=0.5min speed=16704K/sec

unused devices: <none>

Setup software RAID1(data mirroring) using mdadm tool on two disks in linux with step by step guide
Setup software RAID1(data mirroring) using mdadm tool on two disks in linux with step by step guide


you can also execute the below command to know the md details.

[root@localhost ~]# mdadm --detail /dev/md0
/dev/md0:
        Version : 1.2
  Creation Time : Fri Dec 31 21:00:39 2010
     Raid Level : raid1
     Array Size : 2095424 (2046.31 MiB 2145.71 MB)
  Used Dev Size : 2095424 (2046.31 MiB 2145.71 MB)
   Raid Devices : 2
  Total Devices : 2
    Persistence : Superblock is persistent

    Update Time : Fri Dec 31 21:02:23 2010
          State : clean, resyncing
 Active Devices : 2
Working Devices : 2
 Failed Devices : 0
  Spare Devices : 0

  Resync Status : 83% complete

           Name : localhost.localdomain:0  (local to host localhost.localdomain)
           UUID : 94fe9ea1:18bef4c8:d5cd7760:4af176a7
         Events : 13

    Number   Major   Minor   RaidDevice State
       0       8       17        0      active sync   /dev/sdb1
       1       8       33        1      active sync   /dev/sdc1

Step7: now create a directory , assign a file system and mount on the creating directory.

[root@localhost ~]# mkdir /raid1
[root@localhost ~]# mkfs.ext4 /dev/md0
mke2fs 1.43-WIP (20-Jun-2013)
Filesystem label=
OS type: Linux
Block size=4096 (log=2)
Fragment size=4096 (log=2)
Stride=0 blocks, Stripe width=0 blocks
131072 inodes, 523856 blocks
26192 blocks (5.00%) reserved for the super user
First data block=0
Maximum filesystem blocks=536870912
16 block groups
32768 blocks per group, 32768 fragments per group
8192 inodes per group
Superblock backups stored on blocks:
        32768, 98304, 163840, 229376, 294912

Allocating group tables: done
Writing inode tables: done
Creating journal (8192 blocks): done
Writing superblocks and filesystem accounting information: done

[root@localhost ~]# mount /dev/md0 /raid1

Step8: now check using df –h command.

[root@localhost ~]# df -h
Filesystem            Size  Used Avail Use% Mounted on
/dev/mapper/VolGroup-lv_root
                      6.5G  862M  5.3G  14% /
tmpfs                 244M     0  244M   0% /dev/shm
/dev/sda1             477M   72M  376M  17% /boot
/dev/md0              2.0G  3.0M  1.9G   1% /raid1
