How to configure NGINX as a reverse proxy on centos 7 linux step by step guide



 Configure NGINX as a reverse proxy |In this tutorial we learn how to configure NGINX as a reverse proxy to improve performance and security enhancement and other feature of NGINX server is that it acts as a load balancer also.

Lab environment


We have one reverse proxy server.
Reverse Proxy server ipaddress  ================>192.168.137.2
Hostname of proxy server==============> proxy.example.com
We have one web server .
web server ip address ===============>192.168.137.3
hostname of webserver ==============>web.example.com
and put the host file entry if you don’t have any dns server like this.

[root@proxy]# cat /etc/hosts
192.168.137.2     proxy.example.com
192.168.137.3     web.example.com


configuration of webserver


Before configuration of proxy server first we have to configure a sample web server to demonstrate. For this we use apache web server. First we install httpd package and configure it and create a sample index.html file . to do this follow the below step.
To install apache web server we execute the below command.
#yum install httpd



After installing the httpd server start the service and on the startup mode using the below command.
#service httpd start;chkconfig httpd on




Now create a sample index.html file execute the below command
#echo “welcome to techrideradmin.blogspot.com” > /var/www/html/index.html
Now web server configuration part is over . now we are going to configure the proxy server and verify it.and this server is running 8080 port

[root@web ~]# curl http://192.168.137.3:8080

“welcome to techrideradmin.blogspot.com”



configuration of reverse proxy


To configure NGINX  reverse proxy we need to install NGINX on your linux machine  .
See the reference to install the NGINX on linux system

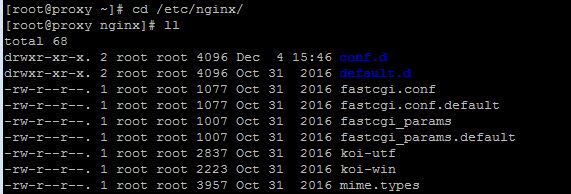

after installing the NGINX we go to the configuration file of the NGINX server which is located at “/etc/nginx/conf.d/default.conf”  .
we remove the default configuration file using the below command.

#rm /etc/nginx/conf.d/default.conf


and create a new file named "proxy.conf".
How to configure NGINX as a reverse proxy on linux step by step guide

                                             How to configure NGINX as a reverse proxy on linux step by step guide




And add the following lines
server {
listen 80;
listen [::]:80;
server_name proxy.example.com;

location / {
proxy_pass http://192.168.137.3:8080/;
}
}

After doing this we check using the below command from the reverse proxy server.


[root@proxy ~]# curl http://192.168.137.2
“welcome to techrideradmin.blogspot.com”




That’s all.Now NGINX acts as reverse proxy which hide the the origin or source of the backend server thus the server is secure from the outside world..
